Metal deep drawing press
Model: YQ32-315T
YD27 Series Three-Beam Four-Column Hydraulic PressItem100T200T315T400T500T630T800THydraulic Pressure (Mpa)25252525252525Effective Stroke of Slider (mm)500700800900120012001200Opening Height (mm)800110
Get More Information
Product Description
| YD27 Series Three-Beam Four-Column Hydraulic Press | |||||||
| Item | 100T | 200T | 315T | 400T | 500T | 630T | 800T |
| Hydraulic Pressure (Mpa) | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Effective Stroke of Slider (mm) | 500 | 700 | 800 | 900 | 1200 | 1200 | 1200 |
| Opening Height (mm) | 800 | 1100 | 1250 | 1500 | 1800 | 1800 | 1000 |
| Effective Area of Workbench | 630*550 | 750*700 | 660*600 | 1000*1000 | 800*800 | 1260*1160 | 800*800 |
| Free Fall Speed (mm/s) | 100 | 100 | 100 | 100 | 100 | 120 | 120 |
| Pressing Speed (mm/s) | 5-10 | 5-15 | 5-10 | 5-10 | 5-10 | 8-15 | 8-15 |
| Return Speed (mm/s) | 300 | 300 | 300 | 300 | 300 | 300 | 300 |
| Motor Power (KW) | 5.5 | 5.5 | 7.5 | 7.5 | 7.5 | 22 | 15 |
| Ejecting Force (t) | 200 | 200 | 400 | 400 | 400 | 630 | 630 |
| Ejecting Stroke (mm) | 200 | 300 | 200 | 220 | 220 | 300 | 300 |
| YD27 Series Three-Beam Four-Column Hydraulic Press | |||||||
| Item | 1000T | 1250T | 1600T | 2000T | 2500T | 3000T | 4000T |
| Hydraulic Pressure (Mpa) | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Effective Stroke of Slider (mm) | 1200 | 1400 | 1400 | 1400 | 1400 | 1600 | 1600 |
| Maximum Opening Height (mm) | 1800 | 2000 | 2400 | 2600 | 2600 | 2800 | 3000 |
| Effective Area of Workbench | 1200*1200 | 1600*1200 | 1600*1400 | 1800*1600 | 1800*1800 | 2500*2200 | 2500*2400 |
| Free Fall Speed (mm/s) | 120 | 120 | 120 | 120 | 120 | 120 | 120 |
| Pressing Speed (mm/s) | 8-15 | 8-15 | 8-15 | 8-15 | 8-15 | 8-15 | 8-15 |
| Return Speed (mm/s) | 300 | 300 | 300 | 300 | 300 | 300 | 300 |
| Motor Power (KW) | 22 | 22 | 30 | 30 | 37 | 45 | 55 |
| Ejecting Force (t) | 630 | 630 | 630 | 630 | 800 | 800 | 800 |
| Ejecting Stroke (mm) | 300 | 300 | 300 | 300 | 300 | 300 | 300 |

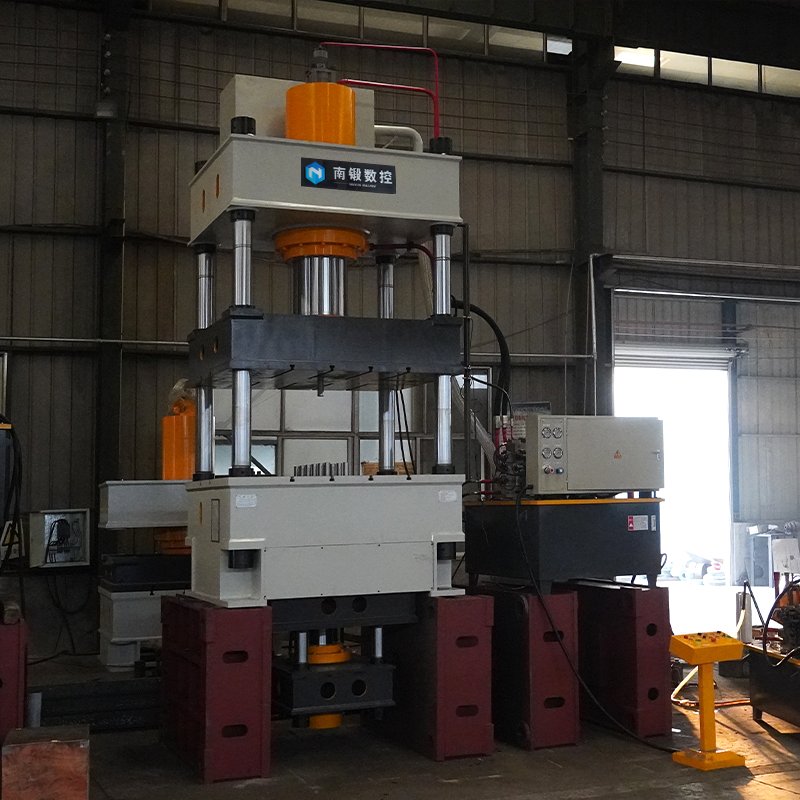

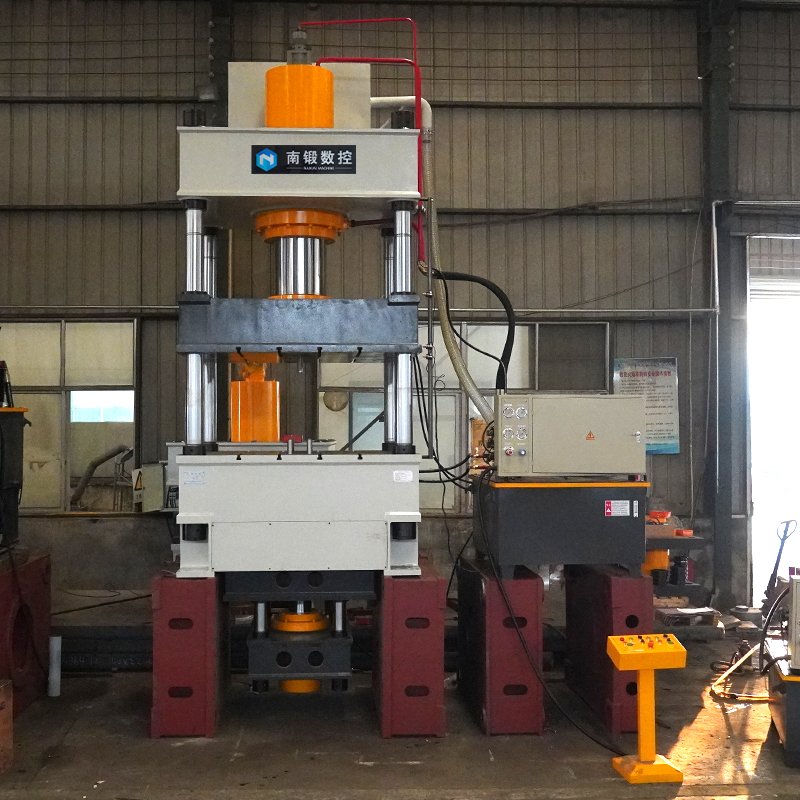

Nadun 400 ton deep draw hydraulic press machine, which is suitable for all kinds of metal sheet deep drawing and molding process, is one of the important equipments in the field of metal processing. It is used in many fields such as automobile sheet metal forming, head deep drawing, cookware deep drawing and so on.
Detail pictures
Parameters
| YD27 Series Three-Beam Four-Column Hydraulic Press | |||||||
| Item | 100T | 200T | 315T | 400T | 500T | 630T | 800T |
| Hydraulic Pressure (Mpa) | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Effective Stroke of Slider (mm) | 500 | 700 | 800 | 900 | 1200 | 1200 | 1200 |
| Opening Height (mm) | 800 | 1100 | 1250 | 1500 | 1800 | 1800 | 1000 |
| Effective Area of Workbench | 630*550 | 750*700 | 660*600 | 1000*1000 | 800*800 | 1260*1160 | 800*800 |
| Free Fall Speed (mm/s) | 100 | 100 | 100 | 100 | 100 | 120 | 120 |
| Pressing Speed (mm/s) | 5-10 | 5-15 | 5-10 | 5-10 | 5-10 | 8-15 | 8-15 |
| Return Speed (mm/s) | 300 | 300 | 300 | 300 | 300 | 300 | 300 |
| Motor Power (KW) | 5.5 | 5.5 | 7.5 | 7.5 | 7.5 | 22 | 15 |
| Ejecting Force (t) | 200 | 200 | 400 | 400 | 400 | 630 | 630 |
| Ejecting Stroke (mm) | 200 | 300 | 200 | 220 | 220 | 300 | 300 |
| YD27 Series Three-Beam Four-Column Hydraulic Press | |||||||
| Item | 1000T | 1250T | 1600T | 2000T | 2500T | 3000T | 4000T |
| Hydraulic Pressure (Mpa) | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Effective Stroke of Slider (mm) | 1200 | 1400 | 1400 | 1400 | 1400 | 1600 | 1600 |
| Maximum Opening Height (mm) | 1800 | 2000 | 2400 | 2600 | 2600 | 2800 | 3000 |
| Effective Area of Workbench | 1200*1200 | 1600*1200 | 1600*1400 | 1800*1600 | 1800*1800 | 2500*2200 | 2500*2400 |
| Free Fall Speed (mm/s) | 120 | 120 | 120 | 120 | 120 | 120 | 120 |
| Pressing Speed (mm/s) | 8-15 | 8-15 | 8-15 | 8-15 | 8-15 | 8-15 | 8-15 |
| Return Speed (mm/s) | 300 | 300 | 300 | 300 | 300 | 300 | 300 |
| Motor Power (KW) | 22 | 22 | 30 | 30 | 37 | 45 | 55 |
| Ejecting Force (t) | 630 | 630 | 630 | 630 | 800 | 800 | 800 |
| Ejecting Stroke (mm) | 300 | 300 | 300 | 300 | 300 | 300 | 300 |
Performance Characteristics

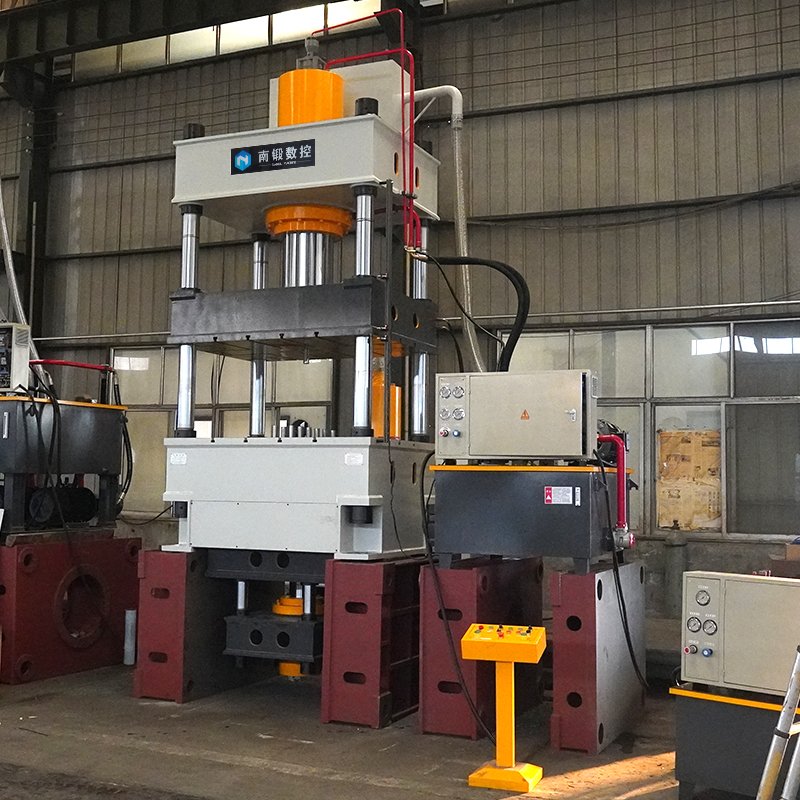

1. Three beams and four columns design, stable structure and large operation space.

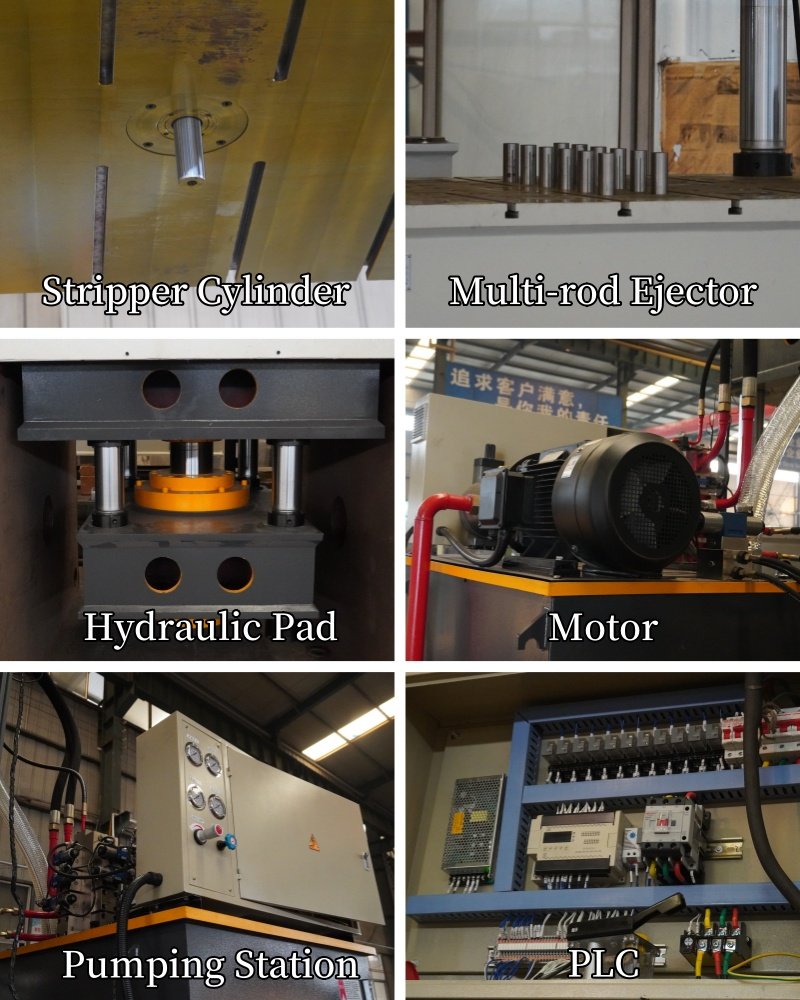

2. With multi-rod ejector device, it can easily complete the deep drawing and molding of all kinds of thin metal plates.
3. With servo system, the pressing precision is higher, more energy-saving and less noise. Different pressing programs can be set to adapt to the production process of different products.
4. It is easy to be operated by buttons and touch screen.
Scope Of Application

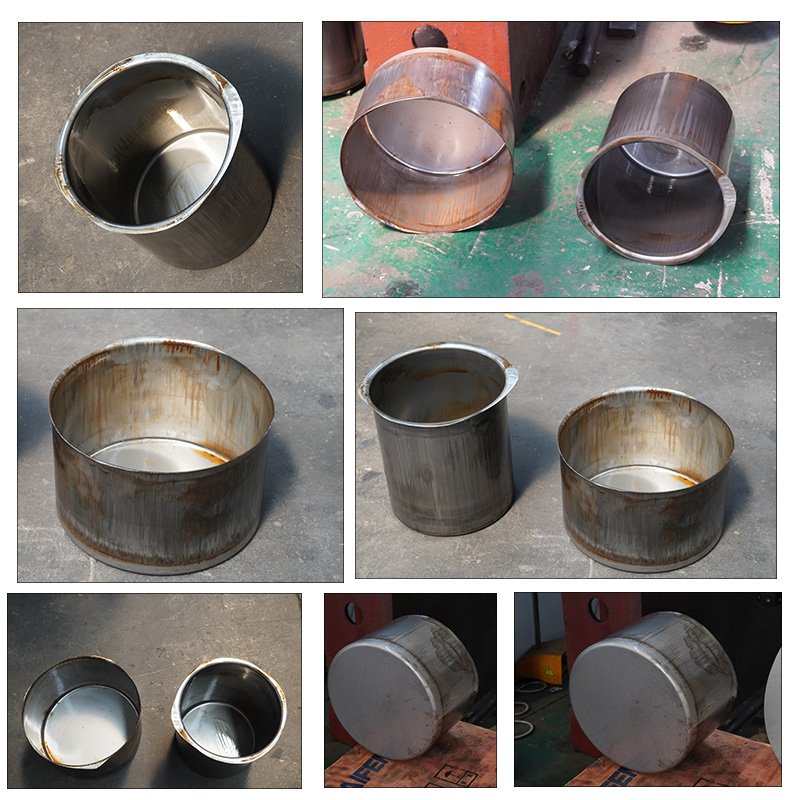

Deep drawing and molding of various metal sheets
Watch our hydraulic press machine in action. This video demonstrates the operation process and key features.
Technical Specifications
| Item | Parameter |
|---|---|
| Model | YQ32-315T |
| Rated Pressure | 315 Tons |
| Slide Stroke | 500mm |
| Max. Open Height | 1000mm |
| Table Size | 1400×1300mm |
| Motor Power | 15KW |
| Dimensions | 2500×1800×3000mm |
| Weight | Approx. 12,000kg |
Technological Process
-
Material Preparation
Prepare metal sheets or blanks according to product requirements.
-
Loading
Place the material on the work table in correct position.
-
Positioning
Use positioning devices to ensure material is properly aligned.
-
Pressing
Start the hydraulic system to perform the pressing operation.
-
Unloading
Remove the formed product from the machine.
-
Quality Check
Inspect the product dimensions and surface quality.
Application Cases
Automotive Parts Manufacturing
Used in producing car body panels with high precision and efficiency.
Appliance Components
Manufacturing of washing machine panels and refrigerator parts.
Hardware Products
Production of various metal hardware products and tools.
